Winmate WNAI-E800 Industrial Edge AI PC with Intel 14th Gen CPU and RTX GPU

Imagine a factory floor where every camera, sensor and robot talks to a computer that can think in real time. The WNAI-E800 Industrial Edge AI PC with Intel 14th Gen CPU and RTX GPU makes that vision real. It is built for heavy-duty AI tasks, video analytics and data processing right at the source. Many plants struggle with slow cloud links, data latency and unreliable hardware. You need a rugged, fast and secure system that can run AI models on site without delay.

Winmate WNAI-E800 Industrial Edge AI PC with Intel 14th Gen CPU and RTX GPU

The biggest problem for modern factories is the gap between data capture and decision making. When analysis waits for the cloud, production slows and errors grow. This matters because every second of delay can cost money and quality. The WNAI-E800 industrial PC closes that gap by delivering a powerful Intel i7-14700T (or optional i9-14900T) processor together with an NVIDIA RTX GPU, all inside a compact metal case. It runs AI models locally, gives instant results and keeps your network traffic low.

Benefits

• Instant AI inference on the shop floor, so you can stop defects before they happen.
• Rugged metal housing and wide temperature range protect the PC in harsh industrial environments.
• Three 2.5 Gb Ethernet ports ensure fast, reliable connections to PLCs, cameras and servers.
• Scalable memory and storage let you grow from a small pilot to a full production line.
• Built-in TPM 2.0 and secure boot keep your data and models safe from tampering.

Usages

Use the WNAI-E800 to run visual inspection on assembly lines, detect anomalies in real time, and guide robotic arms with AI vision. It can host predictive maintenance models that read vibration sensors and warn of equipment wear before a breakdown. In logistics, the PC can sort packages by reading barcodes and images at high speed. Its multiple I/O ports also let you integrate with legacy PLCs, making it a perfect bridge between old control systems and new AI workloads.

Key Features

• Intel Core i7-14700T up to 5.2 GHz (optional i9-14900T up to 5.5 GHz)
• DDR5 4800 MHz SO-DIMM, default 16 GB, expandable to 64 GB
• NVMe M.2 SSD 256 GB base, options up to 4 TB
• NVIDIA RTX 4000 Ada 20 GB GPU (optional RTX 2000, RTX 4060, RTX 4070)
• Three 2.5 Gb Ethernet controllers for fast networking
• TPM 2.0 security module and optional Windows 10/11 IoT or Ubuntu 24.04 OS
• 8 digital inputs and 8 digital outputs with 1.5 kV isolation for machine control
• Power button with LED, clear CMOS button, and optional power button accessory

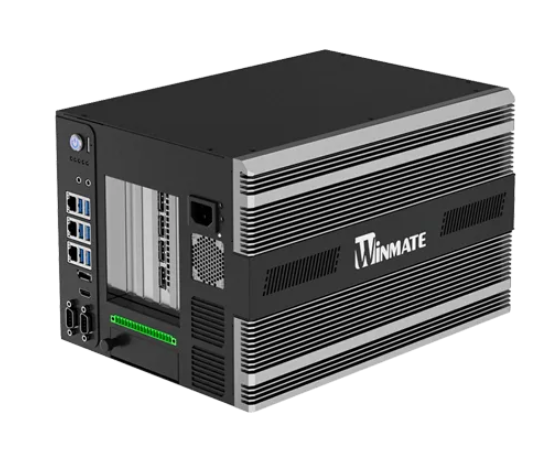

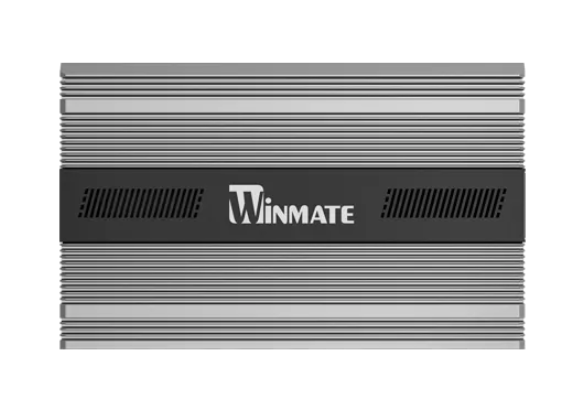

• Metal enclosure, 323.5 230 200 mm size, 7.85 kg weight, desk-mount ready
• Operating temperature -10 C to 50 C (optional -40 C to 60 C) and humidity 10 %-90 % RH
• Expansion slots: PCIe 4.0 x16, PCIe 4.0 x8, PCIe 4.0 x4, M.2 slots for SSD, Wi-Fi and WWAN modules

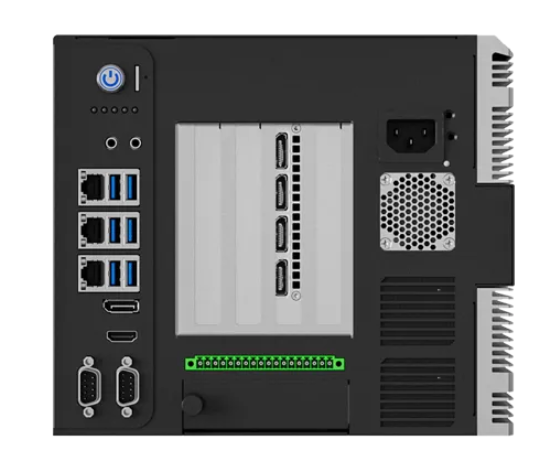

• 6 USB 3.2 Gen 2 ports, 2 RS232/422/485 serial ports, HDMI 2.0b and DP1.4a video outputs

SPECIFICATIONS:
