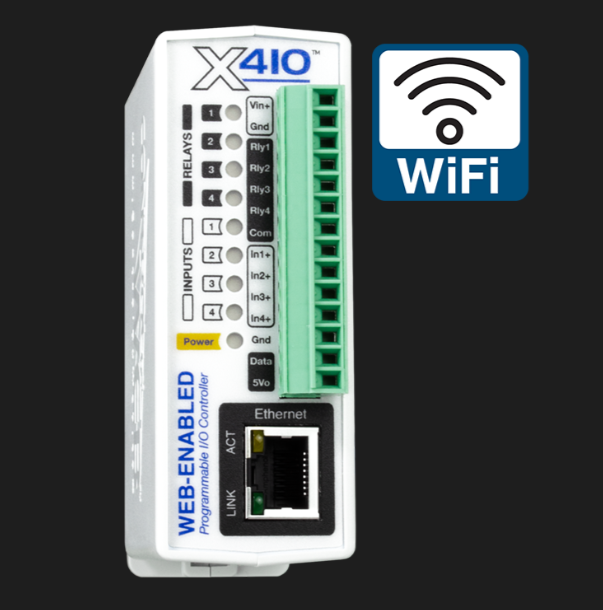

ControlByWeb X-410 Edge Programmable Controller with Ethernet I/O and 4 Relays

Imagine a small factory that loses a few minutes of production every day because its controller cant talk to the cloud or handle extra sensors. That lost time adds up to wasted money and frustrated staff. The X-410 Edge Programmable Controller with Ethernet I/O and 4 Relays is built to sit right at the edge of your system, collect real-time data, and drive loads without a tangled wiring mess. It gives you the speed and reliability you need to keep machines running and data flowing.

ControlByWeb X-410 Edge Programmable Controller with Ethernet I/O and 4 Relays

Many small plants and building managers struggle with controllers that lack enough inputs, relays, or network options. When a controller cant handle the load, the whole system slows down, alarms are missed, and repairs become costly. This problem matters because every missed alarm or delayed decision can cause equipment damage or production loss. The X-410 Edge solves the issue by offering four solid-state relays, eight digital I/O points, built-in Ethernet and optional Wi-Fi, and a compact design that fits in tight spaces. You get local decision making, cloud connectivity, and easy wiring all in one unit.

Usages of Edge

Use the X-410 on a small assembly line to read motor temperature, count parts, and shut down the line if a limit is reached. Install it in a building automation panel to monitor humidity, control lighting relays, and send status to a central dashboard. Deploy it in a water-treatment plant to log pump cycles and alert staff over Ethernet or Wi-Fi. It also fits remote solar sites where a cellular link keeps the controller online and data safe.

Benefits

• Local decisions happen instantly, reducing downtime and protecting equipment.
• Built-in Ethernet and optional Wi-Fi keep you connected without extra hardware.
• Four relays let you drive motors, lights, or valves directly from the unit.
• Temperature and humidity sensors are logged automatically for compliance.
• 24-hour backup power preserves clock and relay states during outages.

Key Features

• Power range 9-28 VDC with optional PoE for flexible installation.
• Four SPST relays rated 28 VAC / 24 VDC, 1 A contact current.
• Four optically isolated digital inputs, 4-26 VDC range.
• Support for up to 16 one-wire temperature sensors (-55 C to +125 C).
• Built-in humidity sensor (0-100 % RH, 2 % accuracy).
• 10/100 Base-T Ethernet with static or DHCP address.
• Optional Wi-Fi 802.11 b/g/n with WPA2/WPA3 security.
• Real-time clock with NTP sync and automatic daylight-savings.
• 512 KB flash log, up to 8,448 entries stored locally.

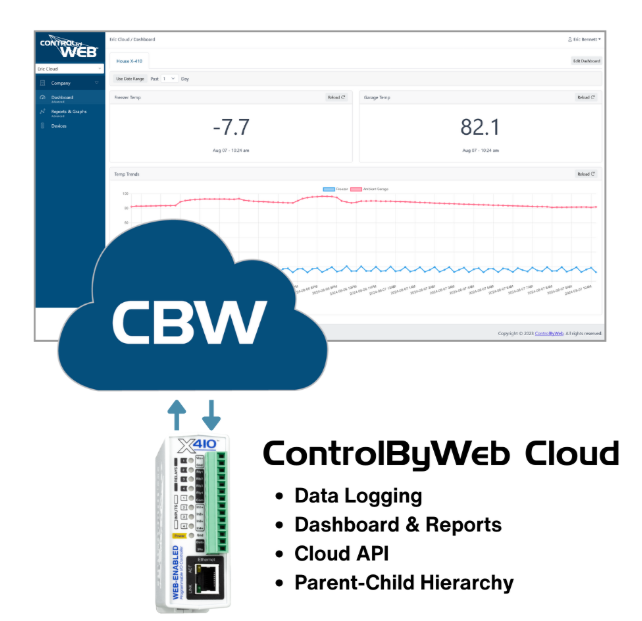

• Supports HTTP, HTTPS, MQTT, Modbus TCP, SNMP, SMTP for cloud integration.

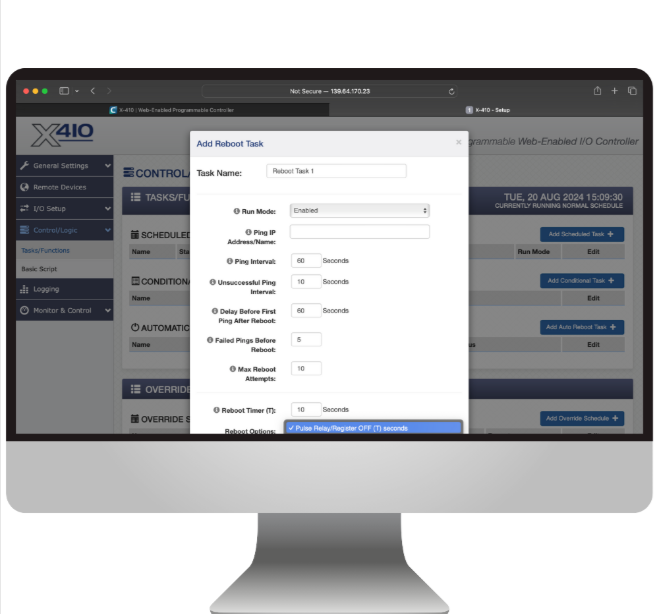

• Task Builder and BASIC interpreter let you add custom logic without extra code.
• Compact size 1.41 in 3.88 in 3.10 in, 5 oz weight, rugged polycarbonate housing.
