Tired of scanners that miss a code or break on the job? The Zebra DS3608-SR 1D/2D, LED 610nm Wired Handheld barcode Scanner is built for fast, reliable reads in tough places. It captures every barcode you need, even when the label is dirty, damaged, or far away. If you need fewer read errors and less downtime, this scanner is the answer.

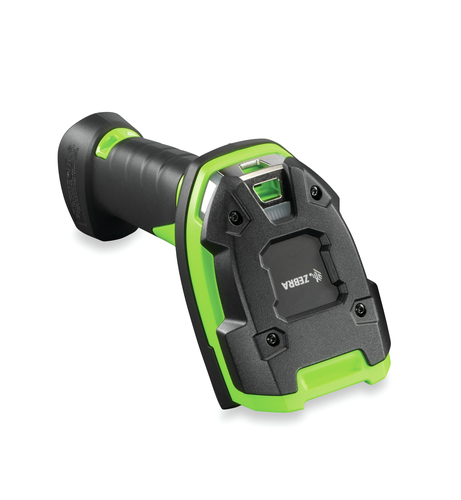

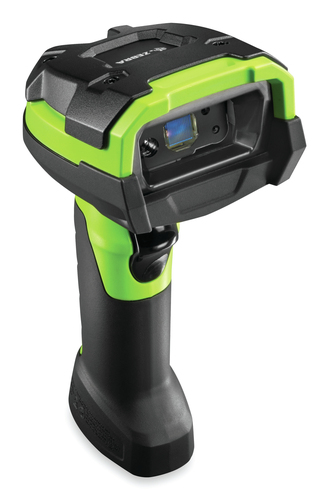

Zebra DS3608-SR 1D/2D, LED 610nm Wired Handheld barcode Scanner - SCNR-087
Many warehouses and factories lose time because a scanner cannot read a code on a moving pallet or a wrapped product. That delay adds up and hurts productivity. The DS3608-SR solves the problem by offering a 30 % longer reading range and the ability to read both 1D and 2D codes through shrink wrap, dust, or damage. The result is faster checkout, smoother inventory moves, and happier staff.
Key Features
- 1280-pixel LED sensor for high-resolution capture.
- Wavelength 610 nm optimized for most barcode types.
- Supports QR, Data Matrix, PDF417, Aztec, and more.
- Reads linear codes such as UPC, Code 128, Code 39.
- Yaw, pitch, and tilt angles of 45 / 65 for flexible positioning.
- Dust-tight, spray-proof, waterproof (IP67) housing.
- USB, RS-232, and keyboard wedge interfaces.
- LED status indicators for quick troubleshooting.
- Lightweight 305 g design for comfortable handheld use.
Specifications
| Scanning |
| Optical sensor resolution |
1280 pixels |
| Yaw reading angle |
-45 - 45° |
| Pitch reading angle |
-65 - 65° |
| Tilt reading angle |
-65 - 65° |
| Wavelength |
610 nm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417,
PDF417, QR Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey, U.P.C. |
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Ethernet LAN |
Yes |
| Standard interfaces |
RS-232, USB, Keyboard wedge |
| Connectivity technology |
Wired |
| Performance |
| Programming function |
Yes |
| LED indicators |
Yes |
| Protection features |
Dust resistant, Shock resistant, Water resistant |
| International Protection (IP) code |
IP67 |
| Product colour |
Black, Green |
| Power |
| Number of reads per charge |
100000 |
| Battery capacity |
3100 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
305 g |
| Height |
185 mm |
| Depth |
76 mm |
| Width |
132 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-30 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
3100 mAh |
| Technical details |
| Compliance certificates |
RoHS |
