Tired of missed scans and slow checkout lines? The Zebra DS8178-HC (DS8178-HCBU210MS5W) handheld scanner lets you read every barcode quickly, even in bright light or tight spaces. It is built for stores, warehouses, and field work where a reliable scan can keep your business moving. If you have struggled with unreadable codes or constant re-scanning, this device gives you the speed and accuracy you need.

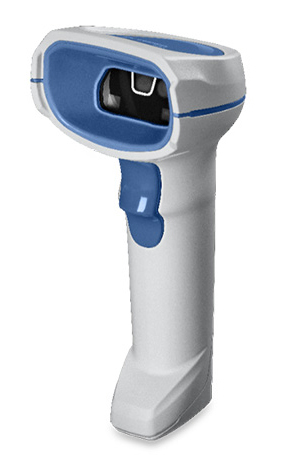

Zebra DS8178-HC (DS8178-HCBU210MS5W), 1D/2D, LED 528 nm Handheld bar code reader
Many businesses lose time because their scanners cannot read damaged or small codes. That delay adds up and hurts customer satisfaction. The Zebra reader solves this by offering a wide 528 nm LED light and a 360 tilt angle, so it captures codes from any direction. It works on both 1D and 2D symbols, so you never need a second device. With Bluetooth and USB options, you can connect it to a PC, tablet, or POS system without hassle.
Key Features
- LED 528 nm illumination for reliable scanning.
- Supports 1D barcodes such as Code 128, UPC, and GS1 DataBar.
- Supports 2D codes including QR, Data Matrix, PDF417, and Aztec.
- Yaw and pitch reading angles of -60 to +60 for flexible positioning.
- 360 tilt reading angle for full coverage.
- Bluetooth Low Energy 4.0 with 100 m wireless range.
- USB interface with shielded cable and desk/wall cradle.
- IP42 rating protects against splashes and dust.
- Built-in 2500 mAh Li-Ion battery for up to 65 000 reads per charge.
- Operating temperature from 0 C to 50 C and humidity up to 95%.
Specifications
| Scanning |
| Yaw reading angle |
-60 - 60° |
| Pitch reading angle |
-60 - 60° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
528 nm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code,
MicroPDF417, PDF417, QR Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar Expanded,
Interleaved 2 of 5, MSI, Plessey, U.P.C.
|
| Sensor type |
LED |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
Bluetooth, USB |
| Connectivity technology |
Wireless |
| Performance |
| International Protection (IP) code |
IP42 |
| Product colour |
White |
| Power |
| Input voltage |
5 V |
| Battery life |
83 h |
| Number of reads per charge |
65000 |
| Battery capacity |
2500 mAh |
| Number of batteries supported |
1 |
| Battery type |
Built-in battery |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
235 g |
| Height |
168 mm |
| Depth |
107 mm |
| Width |
66 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
2500 mAh |
