Retail stores and warehouses often lose money because scanners miss barcodes or read them slowly. When a scanner fails, lines get longer and workers become frustrated. The result is lower sales and unhappy customers. The Zebra DS8178-SR (DS8178-SRSF007ZZWW), 1D/2D Photo diode Handheld bar code reader fixes this by reading every code fast, even the damaged ones, so you can keep the flow moving and keep shoppers happy.

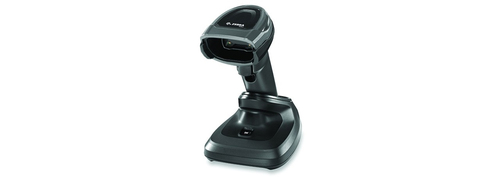

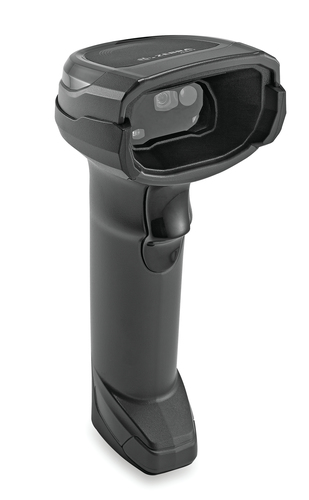

Zebra DS8178-SR (DS8178-SRSF007ZZWW), 1D/2D Photo diode Handheld bar code reader with Zebra
Imagine a scanner that never hesitates, even on a crinkled label or a dim phone screen. This handheld device from Zebra does exactly that. It captures 1D and 2D barcodes in a split second, letting cashiers and floor staff work faster. If you struggle with missed scans or slow checkout, this reader removes that bottleneck and lets you serve more customers with less effort.
Key Features
- Photo diode sensor for reliable 1D and 2D capture.
- 800 MHz processor with PRZM technology for quick decoding.
- Yaw, pitch and tilt angles up to 60 for flexible scanning.
- Supports a full range of 2D codes including QR, Data Matrix and Aztec.
- Supports all common 1D codes such as Code 128, Code 39 and GS1-128.
- Bluetooth 4.0 with up to 100 m wireless range.
- USB and RS-232 interfaces for wired connections.
- IP42 rating protects against dust and light splashes.
- 2500 mAh Li-Ion battery delivers up to 83 hours of use.
- Lightweight design at 235 g for comfortable handheld use.
Specifications
| Scanning |
| Yaw reading angle |
0 - 60° |
| Pitch reading angle |
0 - 60° |
| Tilt reading angle |
0 - 360° |
| Wavelength |
617 nm |
| Working distance |
61 cm |
| 2D (matrix & stacked) barcodes supported |
Aztec Code, Composite Codes, Data Matrix, MaxiCode, Micro QR Code,
MicroPDF417, PDF417, QR Code, TLC-39
|
| Linear (1D) barcodes supported |
Codabar, Code 11, Code 128, Code 128A, Code 128B, Code 128C, Code 39,
Code 93, GS1-128 (UCC/EAN-128), MSI, Plessey
|
| Sensor type |
Photo diode |
| Scanner type |
1D/2D |
| Type |
Handheld bar code reader |
| Ports & interfaces |
| Bluetooth version |
4.0 |
| Wireless range |
100 m |
| Standard interfaces |
Bluetooth, RS-232, USB |
| Connectivity technology |
Wired & Wireless |
| Performance |
| International Protection (IP) code |
IP42 |
| Product colour |
Black |
| Power |
| Battery life |
83 h |
| Battery capacity |
2500 mAh |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Power source type |
Battery |
| Weight & dimensions |
| Weight |
235.3 g |
| Height |
168 mm |
| Depth |
107 mm |
| Width |
66 mm |
| Operational conditions |
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Battery |
| Battery capacity |
2500 mAh |
