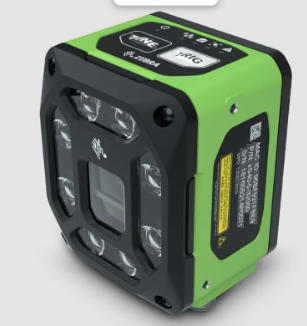

Zebra NS42 Smart Vision Sensor 2.3MP Industrial OCR Inspection

Imagine a production line that never stops because a bad label or unreadable code forces a shutdown. The Zebra NS42 Smart Vision Sensor 2.3MP Industrial OCR Inspection is a compact camera that reads barcodes, QR codes and text in real time. It solves the pain of missed reads, wasted material and costly re-work. You can replace multiple scanners with one device, cutting cost and space. If you need reliable data capture on fast moving items, this sensor is the answer.

Zebra NS42 Smart Vision Sensor 2.3MP Industrial OCR Inspection

Manufacturers lose money when a vision system cannot keep up with speed or lighting changes. The problem grows as product variety increases, and each missed read adds delay. Zebra delivers a sensor that captures clear 2.3 MP images at up to 60 fps, even in harsh factories. The built-in illumination and smart software turn every frame into accurate OCR data, keeping your line moving. The sensor also supports advanced anomaly detection and deep-learning OCR via optional license, so you can spot defects as well as read data.

Usages of Zebra

The sensor fits on conveyor belts, robotic pickers, packaging machines and quality-control stations. It reads serial numbers on metal parts, checks expiry dates on food packages, verifies labels on pharmaceutical bottles, and captures QR codes on consumer goods. Anywhere you need fast, reliable text or code reading, the Zebra sensor can be mounted and start working. It works in temperature ranges from 0 C to 45 C and can be powered by PoE+, making installation easy in existing networks.

Benefits

• Faster line speed with zero missed reads.
• Less waste because wrong items are caught instantly.
• Simple integration using standard Ethernet or USB-C.
• Real-time data sent to PLCs or MES systems.
• Low maintenance thanks to sealed IP65/67 design.

Key Features

• 2.3 MP 1/2.6-inch global-shutter CMOS sensor.
• 1920 1200 resolution with 3 m pixels.
• Up to 60 frames per second capture rate.
• 8 GB internal memory for edge processing.

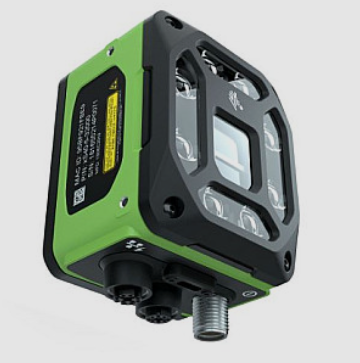

• Replaceable LED array (red 660 nm or white 2700 K).
• 10.8 mm liquid lens for standard range field of view.
• 6.8 mm liquid lens for wide-angle view.
• Ethernet/IP, PROFINET, Modbus TCP and RS-232 support.
• 9 programmable I/O points, 4 opto-isolated.
• ImagePerfect+ technology for up to 16 images per trigger.

Specifications
