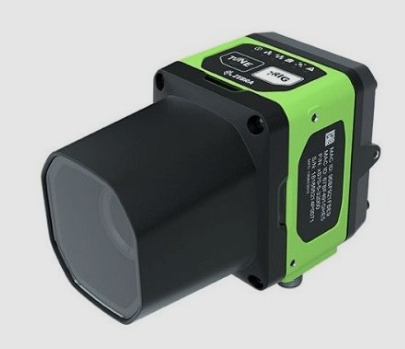

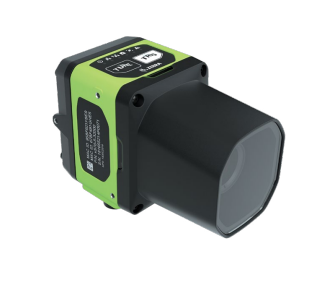

Zebra VS70 Smart Vision Sensor 5.1MP Industrial Machine Vision Camera

Imagine a production line that stops because a barcode cannot be read fast enough. That loss of time costs money and frustrates staff. The Zebra VS70 Smart Vision Sensor 5.1MP Industrial Machine Vision Camera is built to stop that problem. It captures high-resolution images and reads 1D and 2D codes in real time, keeping your line moving smoothly. If you need reliable vision that works in harsh factories, this camera is the answer.

Zebra VS70 Smart Vision Sensor 5.1MP Industrial Machine Vision Camera

Many manufacturers struggle with missed reads, slow inspections, and equipment that cannot survive oil, dust, or temperature swings. When a sensor fails, the whole process can halt, leading to scrap and overtime. The VS70 camera solves those issues by offering a rugged IP65/IP67 housing, built-in decoding LEDs, and fast 30 fps capture at 5.1 MP. It connects via Ethernet, PoE, or USB-C, so you can integrate it into any network without extra wiring. The result is a steady flow of accurate data that keeps quality high and downtime low.

Usages of Zebra

The VS70 fits anywhere a fast, reliable vision system is needed. Use it on conveyor belts to read product codes as items pass by. Install it on robotic arms for precise part placement in assembly. Deploy it in packaging stations to verify label orientation and detect missing items. It also works in harsh environments like metal-working shops because the housing resists chemicals and oil. Each application benefits from the same high-speed, high-resolution imaging.

Benefits

• Fast 30 fps capture reduces bottlenecks and keeps lines moving.
• Rugged IP65/IP67 design survives dust, water, and chemicals.
• Built-in LEDs and status indicators simplify setup and troubleshooting.
• Supports many barcode types, so you can read any label you use.
• Easy Ethernet or PoE connection cuts installation time and cost.

Key Features

• 5.1 MP 1/2.5-inch CMOS sensor with rolling shutter.
• Up to 30 fps at full resolution for high-speed lines.
• Standard C-mount lens interface for flexible optics.
• Industrial green aluminum housing, chemical and oil resistant.
• IP65 and IP67 sealing for protection against dust and water.
• Power options: 10-30 VDC, PoE+ (25.5 W), PoE (13 W), USB-C (15 W).
• Two M12 Ethernet ports (10/100/1000) and multiple I/O ports.
• Supports Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232.
• Zebra Aurora management software for easy configuration.
• Standard and advanced decoder packages for 1D and 2D symbologies.
• 360 status LEDs and adjustable beeper for clear feedback.
• Two-year warranty and optional OneCare service plans.

Specifications

Category	Parameter	Specification Details
Device Characteristics	Dimensions	2.5 in. H x 3.75 in. D x 2.5 in. W (63.0 mm H x 95.0 mm D x 65.0 mm W)
	Weight	22.9 oz. / 650.0 g
	Color & Material	Industrial green aluminum housing
	Housing Qualities	Chemical and oil resistant
	User Indicators	360° Decode/Job Status LEDs; Dedicated LEDs for Power, Online/Run, Focus Warning, Error, Ethernet; Beeper (adjustable)
	Keyboard Support	Supports over 90 international keyboards
Performance & Imaging	Image Sensor (2.3MP)	1/2.3 inch CMOS, global shutter, monochrome, 1920 x 1200 pixels (3.0    m)
	Image Sensor (5.1MP)	1/2.5 inch CMOS, rolling shutter, monochrome, 2592 x 1952 pixels (2.2    m)
	Acquisition Rate	2.3MP: Up to 60 fps; 5.1MP: Up to 30 fps
	Lensing	Supports standard C-mount external lenses
	Illumination	Supports many standard external systems (powered by 24VDC)
Power & Connectivity	External Power	10-30 VDC, 1.5 A max @ 24 VDC (36 W max)
	PoE+ / PoE Supply	PoE+: Class 4 (25.5 W max); PoE: Class 3 (13 W max)
	USB-C Host Power	5 VDC, 3 A max (15 W max)
	Interface Ports	2x M12 Ethernet (10/100/1000); 1x M12 12-pin (Power/GPIO/RS-232); 1x M12 5-pin (External Light/GPIO); 1x USB-C 3.0
	Configurable I/O	Up to 9 digital ports (4 opto-isolated, 5 non-isolated)
	Protocols	Ethernet/IP, PROFINET, Modbus TCP, TCP/IP, RS-232
Software & Tools	Management	Zebra Aurora™
	Decoder Packages	Standard and Advanced (1D/2D Standard @ 5 FPS; Fast/DPM @ 60 FPS)
	MV Toolsets	Sensor, Standard, and Advanced tiers
	Key Vision Tools	Object Locate, Pixel Counter, Brightness, Contrast, Edge, Distance, Pattern, Blob, OCV, Find Circle, Caliper, Filters, Deep Learning OCR
	1D Symbologies	Codabar, Code 39, Code 93, Code 128, I 2 of 5, MSI Plessey, UPC/EAN
	2D Symbologies	Aztec, Data Matrix, DotCode, MaxiCode, PDF417, Micro PDF417, QR Code, Micro QR
Environmental	Operating Temp	External Power: 32° F to 113° F (0° C to 45° C); PoE: 32° F to 113° F (0° C to 40° C)
	Storage Temp	-40° F to 158° F (-40° C to 70° C)
	Sealing	IP65 and IP67
	Shock / Vibration	Shock: EN 60068-2-27 (30 g, 11 ms); Vibration: EN 60068-2-6
Warranty & Service	Warranty	Two (2) years from date of shipment
	Services	Zebra OneCare Select™ and Zebra OneCare Essential™
