Optimized for Smooth VoIP and Data Exchange

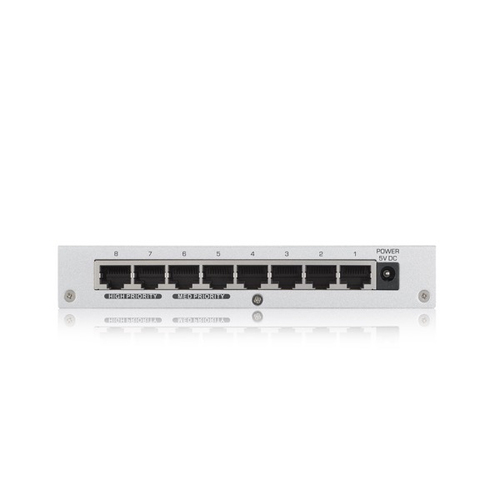

The ZyXEL GS-108B v3 8-Port Desktop Gigabit Ethernet Switch connects network devices and the home network at blazing Gigabit speed. The newly designed QoS ports guarantee smooth transfer for bandwidthintensive applications such as VoIP and data communications.
Compact, sturdy switch with alternative wall-mount design
The GS-108B v3 fits any environment. Regardless of desktop or wallmount installation, its sturdy, compact design provides more flexibility for wired home networks.
Fast, reliable wired connectivity
Without any manual configuration, the GS-108B v3 can boost data transfer speed for connected network devices such as IP phones, network storages, PCs and laptops to the network at blazing-fast Gigabit speed.
Optimized for smooth VoIP and data exchange
The GS-108B v3 has 4 QoS ports with an assigned high- and mediumpriority mechanism to enhance the stability of VoIP and data exchange. Just connect network devices such as IP phones, PCs, laptops or network storages to the high-priority or medium-priority ports of your choice, you can then enjoy smooth VoIP communication and data transfer at the same time.
Green switch saves energy
Compliant with the IEEE 802.3az Energy Efficient Ethernet standard, the GS-108B v3 provides power-saving benefits without compromising performance. The GS-108B v3 can automatically adjust power consumption according to the number of active, connected network devices and cable length; that is, it consumes less power if fewer network devices are connected and active, or when the length of Ethernet cable is shorter.
Specifications
| Management features |
| Quality of Service (QoS) support |
Yes |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Network |
| Auto MDI/MDI-X |
Yes |
| Flow control support |
Yes |
| Full duplex |
Yes |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Jumbo frames support |
Yes |
| Store-and-forward |
Yes |
| Switching capacity |
16 Gbit/s |
| MAC address table |
4000 entries |
| Design |
| LED indicators |
Yes |
| Product colour |
Silver |
| Rack mounting |
No |
| Power |
| Power consumption (max) |
3 W |
| Output current |
1 A |
| Output voltage |
5 V |
| AC input voltage |
100 - 240 V |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating temperature (T-T) |
0 - 50 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating relative humidity (H-H) |
10 - 95% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 50 °C |
| Weight & dimensions |
| Weight |
325 g |
| Height |
26 mm |
| Depth |
85 mm |
| Width |
155 mm |
| Packaging content |
| Quick start guide |
Yes |
| Packaging data |
| Package weight |
493 g |
| Package height |
95 mm |
| Package depth |
90 mm |
| Package width |
161 mm |
| AC adapter included |
Yes |
