Product Code: CCEL-384
MPN #: 311331183

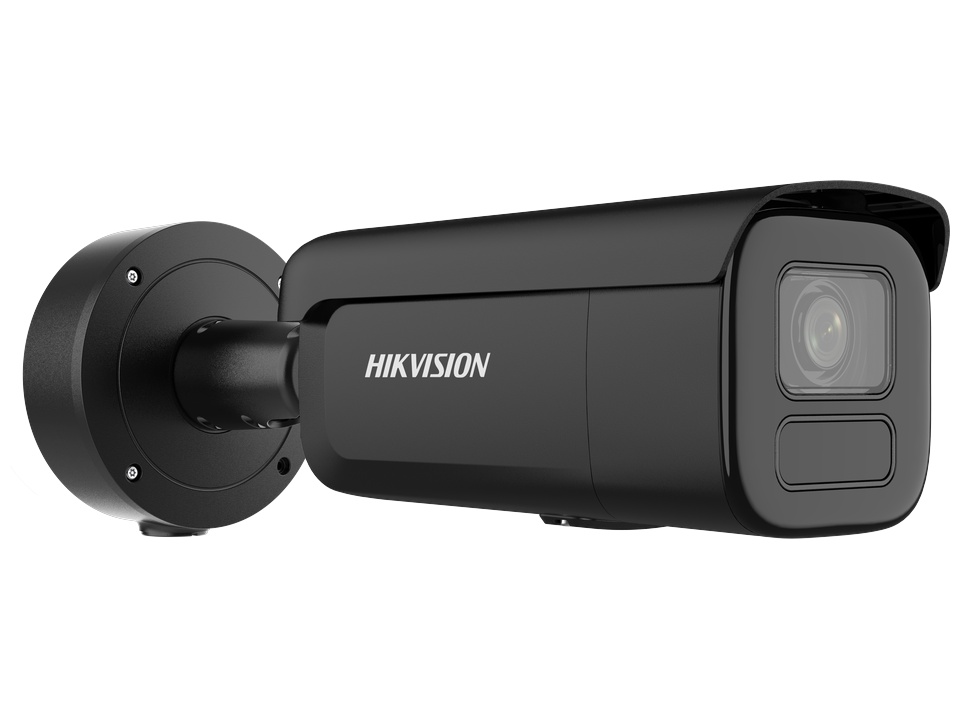

Finding a camera that can capture clear details in both bright daylight and dark night is hard. If the video is blurry or the view is too narrow, you miss important events and your safety is at risk. The Hikvision DS-2CD2646G2H-IZS(2.8-12mm)/eF/BLK 4MP IP Bullet Camera Varifocal Lens gives you sharp, wide-angle images and lets you adjust the focus to see exactly what matters.
You need a camera that works outdoors, handles rain, dust and impact, and still gives you crystal-clear video. This Hikvision bullet camera is built for those exact conditions. It uses a motorized varifocal lens so you can change the field of view from wide to narrow without moving the camera. The result is a reliable, high-resolution view that protects your home, business or property.
| Camera Type | Outdoor bullet network camera (Powered by DarkFighter, motorized varifocal) |
| Image Sensor | 1/3″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Minimum Illumination | Colour: 0.001 Lux @ F1.0 (AGC ON) B/W: 0 Lux with IR |
| Shutter Time | 1/3 s – 1/100,000 s |
| Day/Night Mode | IR cut filter |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90°; Rotate: 0°–360° |
| Lens Type | Varifocal, motorized |
| Focal Length | 2.8–12 mm |
| Field of View (FOV) | Horizontal: 105.4°–34.3° Vertical: 56.1°–19.3° Diagonal: 125.8°–39.4° |
| Lens Mount / Iris | Ø14 mm / Fixed iris |
| Aperture | F1.0 |
| Depth of Field | 1 m – ∞ |
| DORI Range (Wide/Tele) | Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m Tele: D: 180.6 m, O: 71.7 m, R: 36.1 m, I: 18.1 m |
| IR Illuminator | 850 nm, up to 60 m, smart supplement light |
| Video Main Stream | 50 Hz: 25 fps (2688×1520, 1920×1080, 1280×720) 60 Hz: 30 fps |
| Video Sub‑Stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360) 60 Hz: 30 fps |
| Video Third Stream | 50/60 Hz: 10 fps (various resolutions, optional) |
| Video Compression | Main: H.265/H.264/H.264+/H.265+ Sub: H.265/H.264/MJPEG Third: H.265/H.264 |
| Video Bit Rate | 32 Kbps – 8 Mbps |
| H.264/H.265 Type | H.264: Baseline, Main, High Profile H.265: Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | Supported for H.264/H.265 |
| Region of Interest (ROI) | 1 fixed region (main & sub-stream) |
| Audio Support | Compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC Bit Rate: 8–320 Kbps Sampling Rate: 8–48 kHz Noise Filtering: Yes |
| Network Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API Support | ONVIF (Profile S/G/T), ISAPI, SDK, ISUP |
| Users / Host Access | Up to 32 users, 3 levels: Administrator, Operator, User |
| Security | Password protection, HTTPS, 802.1X (EAP-TLS, LEAP, MD5), watermark, IP filter, HTTP/HTTPS authentication, WSSE, TLS 1.1/1.2/1.3, MAC authentication |
| Network Storage | NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client Software | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser Support | IE 10/11 (plug-in required), Chrome 57+, Firefox 52+, Edge 89+ |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance (adjustable) |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancements | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privacy Mask | 4 programmable polygon masks |
| Ethernet Interface | 1 × RJ45 10/100 Mbps self-adaptive |
| On-board Storage | microSD/microSDHC/microSDXC up to 512 GB |
| Audio I/O | 1 input, 1 output, two-core terminal block |
| Alarm I/O | 1 input, 1 output (max 24 VDC/24 VAC, 1 A) |
| Reset Key | Yes |
| Event Support | Motion detection, scene change detection, exception alarms |
| Smart Event | Face capture, perimeter protection (line crossing, intrusion, region entrance/exit) |
| Linkage Options | FTP/NAS/memory card upload, notifications, email, alarm output, recording, capture, audible warning |
| Power Supply | 12 V DC ±25%, 1.21 A, max 14.5 W PoE: IEEE 802.3at, Class 4, max 18 W |
| Material | Front cover: Metal, Body: Metal, Bracket: Metal |
| Dimensions | Ø 140 mm × 333.8 mm |
| Package Dimensions | 385 × 190 × 180 mm |
| Camera Weight | ~1,490 g |
| Package Weight | ~2,349 g |
| Storage Conditions | –30 °C to 60 °C, ≤95 % RH (non-condensing) |
| Operating Conditions | –30 °C to 60 °C, ≤95 % RH (non-condensing) |
| General Functions | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Languages Supported | 33 languages (English, Russian, German, French, Spanish, Japanese, Korean, Traditional Chinese, Thai, Vietnamese, etc.) |
| Approvals / Certifications | CE-EMC, IC, RCM, CB, CE-LVD, CE-RoHS, WEEE, REACH |
| Protection | IP67 (dust/water), IK10 (impact) |
